Automatic gantry CNC drilling, milling and laser cutting systems for large plates

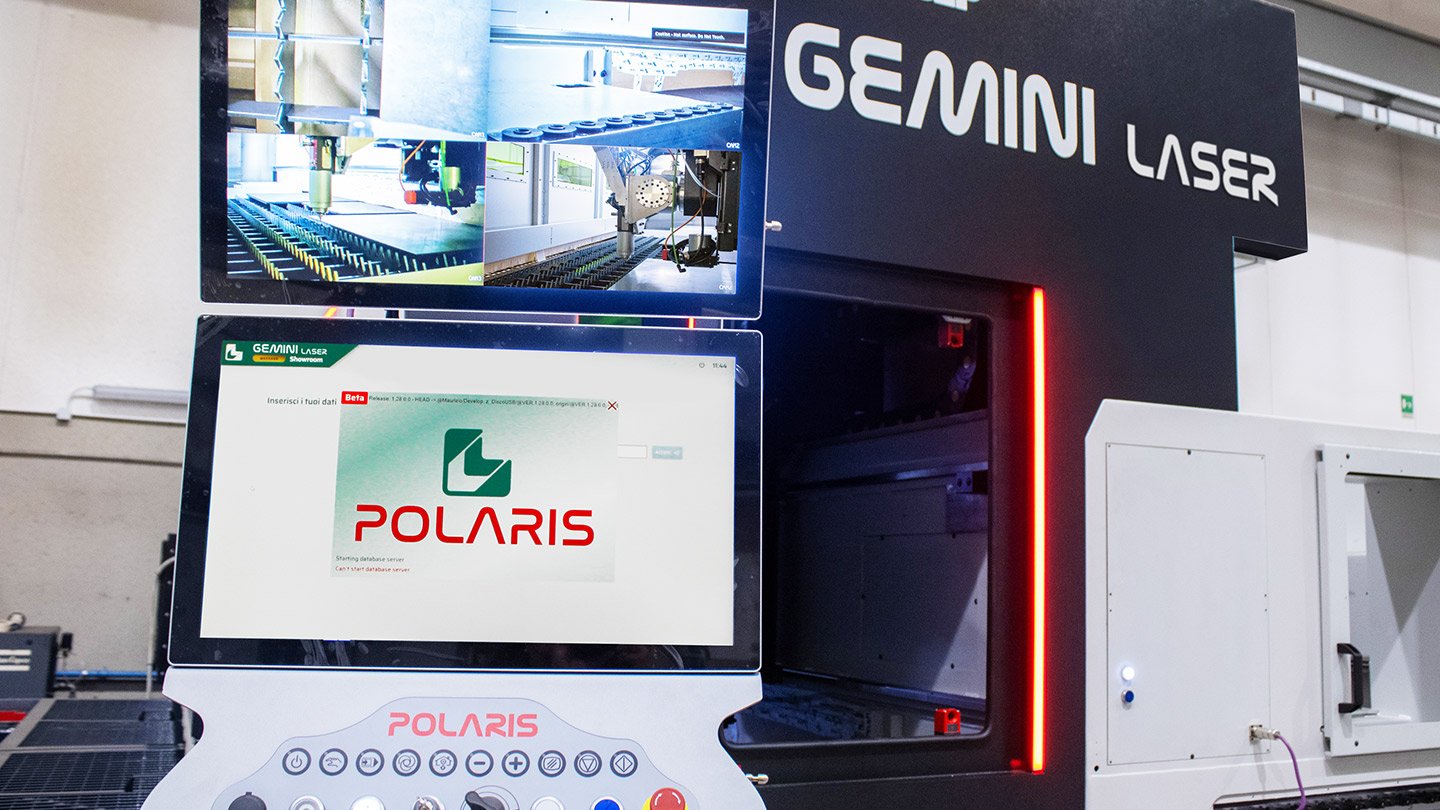

Introducing the new Gemini LASER — a groundbreaking evolution in plate processing technology! Gemini LASER is the ultimate plate processor designed for fabricators and manufacturers of every scale. Engineered to handle everything from light to heavy plates, the Gemini LASER not only performs marking, milling, drilling, tapping, and beveling with unmatched precision and speed, but it also does so within a minimal footprint, reducing both capital investment and overall part costs.

This state-of-the-art machine now features an innovative laser cutting unit that sets a new benchmark in the industry. This innovative laser cutting system redefines performance by combining a mobile gantry design with cutting-edge laser technology, ensuring 100% productivity even during material loading and unloading.

PROCESSES
Drilling
Scribing
Milling
Countersinking
Tapping
Laser Cutting
SECTION SHAPES
testa laser_giusta

NEW LASER CUTTING TECHNOLOGY

The Gemini LASER can process plates from 5 mm to 60 mm (1/4” –2-3/8”) thick and is available with laser sources from 12 kW to 30 kW, delivering competitive, high-quality cuts on both mild and stainless steel. Additionally, more powerful laser sources exceeding 30 kW are offered based on application needs.

AUTOMATIC NOZZLE CHANGER

For seamless operation, the automatic nozzle changer optimizes performance with brushing and calibration, ensuring durability and adaptability.

DRILLING UNIT

The high-speed machining spindle allows extremely productive drilling of holes from 5 to 60mm (1/4” –2-3/8”). For larger holes up to 250mm (9-3/4”) the Gemini can mill holes with exceptional accuracy on diameter and concentricity.

TOOL CHANGER

Automatic tool change systems, managed by the CNC, having 8 or 24 positions allows to equip the line with all the necessary tools.

ADVANCED MILLING

Dedicated software upgrades allow special milling operations such as straight slots, special curve slots, countersinking, “Y” and “J” groove, and other special cycles.

EDGE BEVELLING BY LASER

In addition to milling operations, Gemini Laser can perform weld preps (V, Y, X, K) with laser bevelling.

DOUBLE GANTRY SYSTEM

Gemini systems can be combined in tandem with another Gemini or with our Kronos plate cutting systems to optimize the productivity and floor space with lower costs.

AUTOMATIC PARTS UNLOADING

Gemini can be integrated with a 4/6-axis robot (with single or dual magnetic system), and a Cartesian robot (equipped with a single magnet), both engineered to seamlessly handle a wide variety of part sizes, enhancing its productivity and automation.

previous next
Efficiently engineered gantry-style structure and a state-of-the-art laser head, boosting both cutting performance and speed;
Efficiently engineered gantry-style structure and a state-of-the-art laser head, boosting both cutting performance and speed;
Robust twin bridge beam box design ensuring minimal deflection during drilling and milling;
Robust twin bridge beam box design ensuring minimal deflection during drilling and milling;
High speed milling and drilling with 7,000 RPM spindle speeds and automatic tool changer;
High speed milling and drilling with 7,000 RPM spindle speeds and automatic tool changer;
Innovative laser technology with significantly reduced kerf gap to minimize slag production;
Innovative laser technology with significantly reduced kerf gap to minimize slag production;
Optimal stability and accuracy of the laser head thanks for its dual guides;
Optimal stability and accuracy of the laser head thanks for its dual guides;
Optional bevel head with ±45° rotation expands cutting possibilities for complex designs.
Optional bevel head with ±45° rotation expands cutting possibilities for complex designs.
[table id=549 /]
Units of measure
GEMINI LASER
Automatic gantry CNC drilling, milling and laser cutting systems for large plates		G25LSG32LS
Plate size [max. mm]2540x60003100x6000
Plate thickness with 30 kW laser source [max. mm]6060
Straight laser head [max. no.]11
Bevel laser head [max. no.]11
Drilling heads [no.]11
Drilling tools per head [no.]8 (24)8 (24)
Drilling diameter [max. mm]40 (250)40 (250)
Drilling thickness [max. mm]6060
Spindle power [kW]1515
Spindle speed [max. RPM]70007000
Machine weight [kg]45004800
GEMINI LASER
Automatic gantry CNC drilling, milling and laser cutting systems for large plates		G25LSG32LS
Plate size [max. inch]100’’ x 236’’122’’ x 236’’
Plate thickness with 30 kW laser source [max. inch]2-3/8”2-3/8”
Straight laser head [max. no.]11
Bevel laser head [max. no.]11
Drilling heads [no.]11
Drilling tools per head [no.]8 (24)8 (24)
Drilling diameter [max. inch]1-9/16’’ (9-3/4’’)1-9/16’’ (9-3/4’’)
Drilling thickness [max. inch]2-3/8”2-3/8”
Spindle power [HP]2020
Spindle speed [max. RPM]70007000
Machine weight [lbs.]9,9009,900

Watch the video of GEMINI LASER model.
