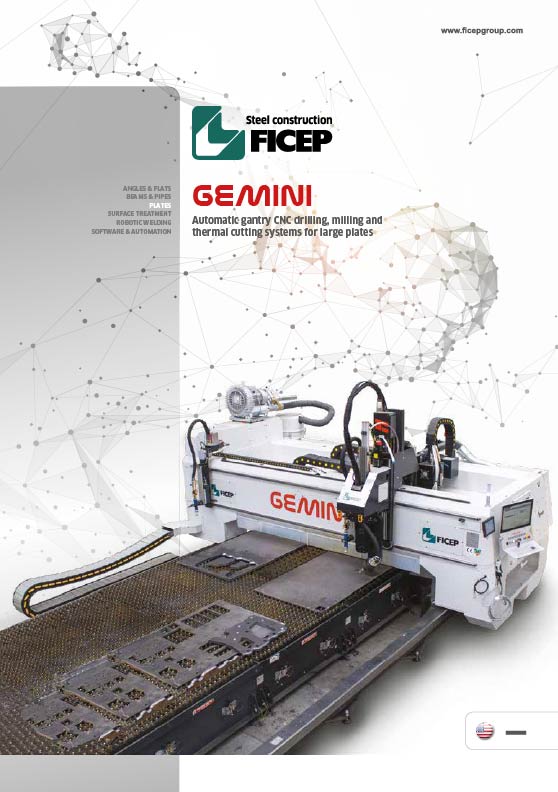

Automatic gantry CNC drilling, milling and thermal cutting systems for large plates

The Gemini is the complete plate processor solution for fabricators and manufacturers of all sizes. It handles from light to heavy plates for thermal cutting, marking, drilling, tapping, milling, beveling and more, with unprecedented productivity and accuracy. This achieves the lowest part cost due to its minimal floor space, low capital investment and productivity.

PROCESSES

Drilling

Scribing

Milling

Countersinking

Tapping

Oxy-fuel cutting

Plasma cutting

SECTION SHAPES

Plates

DRILLING UNIT

The high speed machining spindle allows extremely productive drilling of holes from 5 to 80mm (1/4” – 3-1/8”). For larger holes up to 400mm (15-4/5”) the Gemini can mill holes with exceptional accuracy on diameter and concentricity.

TOOL CHANGER

Automatic tool change systems, managed by the CNC, having 6, 16 or 24 positions allows to equip the line with all the necessary tools.

ADVANCED MILLING

Dedicated software upgrades allow special milling operations such as straight slots, special curve slots, countersinking, “Y” and “J” groove, and other special cycles.

OXY-FUEL TORCHES

Gemini systems can be equipped with up to three oxy-fuel cutting torches to cover all manufacturing needs.

HYPERTHERM PLASMA UNITS

The brand new Hypertherm XPR300 or HPR400XD power sources can be supplied for one or two torches for straight or bevel cutting.

HYPERTHERM “TRUE HOLE”

Hypertherm “True Hole” process is available on this model.

SCRIBING

Scribing operations are available for identification marks, part numbers, bending lines, center locations for positioning and welding. Deeper markings can also be generated so they are viewable after painting/galvanizing.

CUTTING BENCH

The bench is made of a sturdy grid suitable to guarantee the stable positioning of the plate during the processing. The bench is pre-arranged to receive the fume exhaust and filtering system.

FUME EXHAUST SYSTEM

The exhaust system filters the particulate matter generated by the thermal cutting operations. The air is filtered according to the latest health and safety requirements
.

DOUBLE GANTRY SYSTEM

Gemini systems can be combined in tandem with another Gemini or with our Kronos plate cutting systems to optimize the productivity and floor space with lower costs.

ROBOTIC UNLOADING

Gemini can be integrared with an independent 4-axis robotic part unloading system to enhance its productivity and automation

Simple floor mounted installation without the need for special foundations.

Precision laser for plate referencing that automatically rotates the plate nesting program to eliminate the need to square the plate prior to processing.

Multiple integrated plate clamps rapidly adjust to the plate thickness to reduce the clamping cycle. The clamps rigidly secure the plate to the material bed to eliminate vibration and extend tool life even during aggressive machining.

Remote diagnostics are possible through a network connection that allows our service team to perform a system analysis.

GEMINI Automatic gantry CNC drilling, milling and thermal cutting systems for large plates	G25SP	G32SP	G25HPE	G32HPE	G36HDE	G36XD
Plate size [max.mm]	2540x6000	3100x6000	2540x6000	3100x6000	3600x6000	3600x6000
Plate thickness with plasma [max.mm]	80	80	80	80	80	80
Plasma straight torches [max.no.]	1	1	1	1	2	2
Plasma bevel torches [max.no.]	1	1	1	1	2	2
Plate thickness with oxy-fuel [max.mm]	100	100	100	100	127	150
Oxy-fuel-fuel torches [max.no.]	3	3	3	3	3	3
Drilling heads [no.]	1	1	1	1	2	2
Drilling tools per head [no.]	6	6	24	24	24	16
Drilling diameter [max.mm]	40	40	40 (250)	40 (250)	75 (400)	80 (400)
Drilling thickness [max.mm]	80	80	80	80	127	305
Spindle power [kW]	15	15	15	15	30	58
Spindle speed [max.RPM]	7000	7000	7000	7000	6000	4500
Machine weight [kg]	4500	4800	4500	4800	9500	15000
