KRONOS

Home » KRONOS

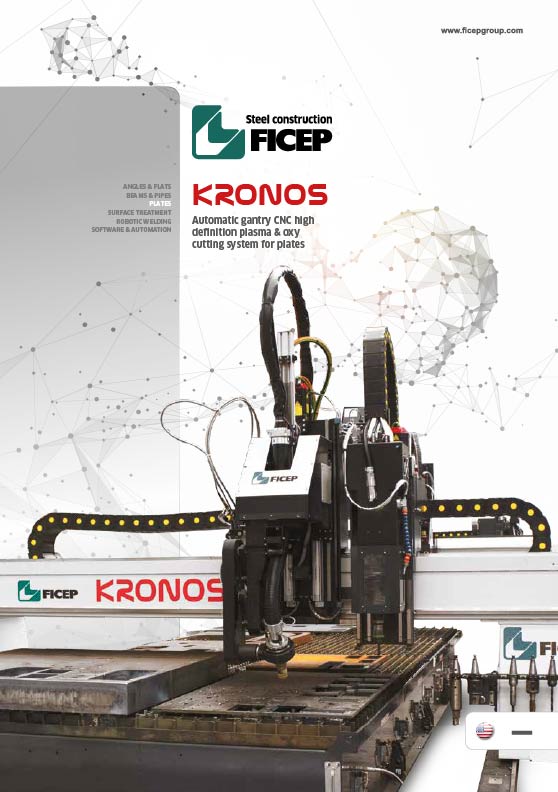

Automatic gantry style CNC high definition plasma & oxy-fuel cutting system for plates

Kronos HP, SP & PC models are heavy duty gantry style thermal cutting systems engineered for steel fabricators who need to generate diverse plate parts from stock plates.The Ficep Kronos integrates all the cutting, marking and drilling processes into one single operation to reduce material handling cost.

PROCESSES

Oxy-fuel cutting

Plasma cutting

Drilling

Scribing

Countersinking

Tapping

SECTION SHAPES

Plates

OXY-FUEL TORCHES

Kronos HP & SP series can be equipped with up to four oxy-fuel cutting torches to cover all manufacturing needs.

HYPERTHERM PLASMA UNITS

One or two high-definition plasma torches for straight and bevel cutting are available. The Kronos can be configured with either the XPR170 or XPR300 torches from Hypertherm

HYPERTHERM “TRUE HOLE”

Hypertherm “True Hole” process is available on this model.

CUTTING BENCH

The cutting bench is made of a sturdy grid suitable to guarantee the stable positioning of the plate during the processing. The bench is pre-arranged to receive the fume exhaust and filtering system.

FUME EXHAUST SYSTEM

The exhaust system filters the particulate matter generated by the thermal cutting operations. The air is filtered according to the latest health and safety requirements.

DOUBLE GANTRY SYSTEM

Kronos HP & SP series can be combined in tandem with another Kronos or with our Gemini plate cutting and drilling system to optimize the productivity with lower costs.

DRILLING UNIT

Kronos HP & SP series have the possibility to be equipped with a drilling unit with a 4 or 6 positions tool changer, to allow for both pre-hole applications.

ROBOTIC UNLOADING

Kronos can be integrared with an independent 4-axis robotic part unloading system to enhance its productivity and automation

Long term accuracy and high reliability.

The Kronos PC model is available for plasma cutting with the electrical cabinet integrated into the table to save space and reduced installation time.

Installation of the overall system in one step with possibility to add a second system at a later date.

Remote diagnostics are possible through a network connection that allows our service team to perform a system analysis.

Units of measure

Metric
Imperial

KRONOS Automatic gantry CNC drilling and thermal cutting systems for large plates	KR25SP	KR32SP	KR36SP	KR25HP	KR32HP	KR36HP
Plate size [max.mm]	2540x6000	3100x6000	3600x6000	2540x6000	3100x6000	3600x6000
Plate thickness with plasma [max.mm]	50	50	50	80	80	80
Plasma straight torches [max.no.]	1	1	1	2	2	2
Plasma bevel torches [max.no.]	1	1	1	2	2	2
Plate thickness with oxy-fuel [max.mm]	150	150	150	150	150	150
Oxy-fuel-fuel torches [max.no.]	4	4	4	4	4	4
Drilling heads [max.no.]	1	1	1	1	1	1
Drilling tools per head [max.no.]	6	6	6	6	6	6
Drilling diameter [max.mm]	40	40	40	40	40	40
Spindle power [kW]	15	15	15	15	15	15
Spindle speed [max.RPM]	6000	6000	6000	6000	6000	6000
Machine weight [kg]	2500	2800	3000	2500	2800	3000

KRONOS Automatic gantry CNC thermal cutting systems for plates	KR153PC	KR204PC	KR206PC	KR208PC
Plate size [max.mm]	1500x3000	2000x4000	2000x6000	2000x8000
Plate thickness with plasma [max.mm]	50	50	50	50
Plasma straight torches [max.no.]	1	1	1	1
Machine weight [kg]	4000	5000	7500	10000

KRONOS Automatic gantry CNC drilling and thermal cutting systems for large plates	KR25SP	KR32SP	KR36SP	KR25HP	KR32HP	KR36HP
Plate size [max. inch]	100’’ x 236’’	122’’ x 236’’	141’’ x 236’’	100’’ x 236’’	122’’ x 236’’	141’’ x 236’’
Plate thickness with plasma [max. inch]	2"	2"	2"	3"	3"	3"
Plasma straight torches [max.no.]	1	1	1	2	2	2
Plasma bevel torches [max.no.]	1	1	1	2	2	2
Plate thickness with oxy [max. inch]	6"	6"	6"	6"	6"	6"
Oxy-fuel-fuel torches [max.no.]	4	4	4	4	4	4
Drilling heads [max.no.]	1	1	1	1	1	1
Drilling tools per head [max.no.]	6	6	6	6	6	6
Drilling diameter [max. inch]	1-9/16”	1-9/16”	1-9/16”	1-9/16”	1-9/16”	1-9/16”
Spindle power [HP]	20	20	20	20	20	20
Spindle speed [max.RPM]	6000	6000	6000	6000	6000	6000
Machine weight [lbs.]	5,500	6,200	6,600	5,500	6,200	6,600

KRONOS Automatic gantry CNC thermal cutting systems for plates	KR153PC	KR204PC	KR206PC	KR208PC
Plate size [max. inch]	59’’ x 118’’	78-3/4’’ x 157"	78-3/4’’ x 236’’	78-3/4’’ x 315’’
Plate thickness with plasma [max. inch]	2"	2"	2"	2"
Plasma straight torches [max.no.]	1	1	1	1
Machine weight [lbs.]	8,800	11,000	16,500	22,000
