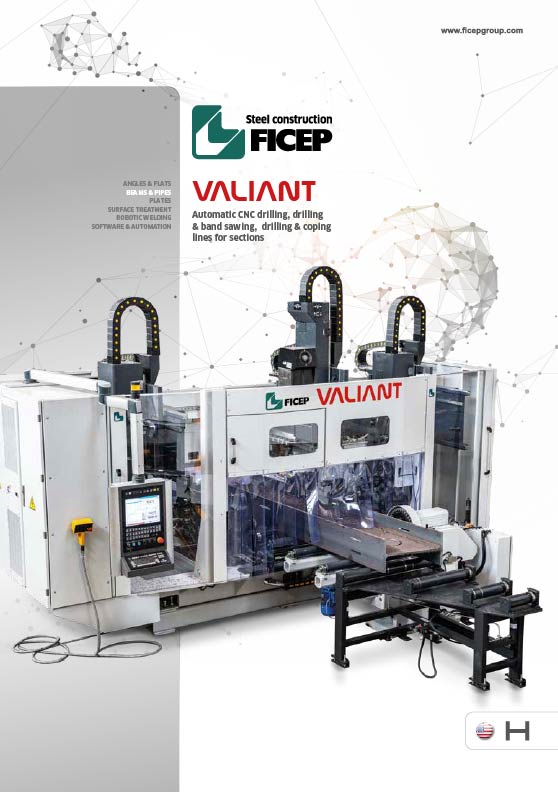

Brochure request

Automatic CNC drilling, drilling & band sawing, drilling & coping lines for sections

The Valiant represents the latest evolution in our drill line range. This product line is a new three-spindle system for the processing of the complete range of rolled structural steel shapes. These new models are the result of the constant commitment by our Engineering Team in addressing the requirements of the world’s structural steel fabricators. In addition to the many industry leading innovative designs and features of the other structural steel drilling lines in our range, the Valiant incorporates several additional unique features and benefits, as described here below.

PROCESSES

Drilling

Scribing

Milling

Countersinking

Tapping

Marking

Band sawing

Oxy-fuel cutting

Plasma cutting

SECTION SHAPES

Beams

Angles

Flats

Channels

Square tubes

Rectangular tubes

NEW DOUBLE INDEPENDENT VICES

A new independent hydraulic double vice assembly and dual alignment system to improve material clamping. The vice assembly is made of a fix jaw (used for the datum reference), and of one CNC controlled mobile jaw.

NEW SPINDLE DESIGN

New Direct Drive spindles with reduced shape, size and a longer nose for greater rigidity that delivers 100% of the motor’s power to the tool for enhanced drilling performances.

EXTENDED AUXILIARY SUB AXES

The auxiliary axis on each spindle generates an additional stroke of 300 mm (11-3/4”), to carry out countless operations while keeping the material rigidly clamped in position. This translates into greater flexibility and unequalled productivity.

NEW CARRIAGE AND PINCHER

A new single or double pincher arm with an auxiliary axis on both arms has been created. The new structure and design has been engineered for both the arm and the pincher to include a larger opening and sensor system. ,

14 POSITIONS AUTOMATIC TOOL CHANGER

All three drilling heads can be equipped with a brand new tool-change system with 14 positions for each spindle for a complete complement of 42 tools in total.

ADVANCED MILLING

Thanks to the spindles sub-axis feature advanced milling operations are possible such as helical milling, pocketing, weld-prep, slotting and more.

MAGNETIC DEVICE

When combined with a band saw, a magnetic back fence allows for the unloading of trim cuts, small drops and short parts onto the unloading table for short pieces.

SINGLE CNC CONTROL UNIT

When combined with a band saw or with a thermal coping robot, there is no need to add a further CNC unit as the entire system is controlled by a single CNC.

SAFETY

All our systems are supplied in accordance with the highest safety standards and regulations.

The Valiant represents a new age in our drilling range thanks to all the technological innovations which have been implemented on this model.

The new sub-axis spindle positioning enables simultaneous drilling on all three surfaces even when the holes are not aligned. The underside scribing device, also with sub-axis positioning, permits up to four-side simultaneous scribing operations.

The extended 300 mm (11-3/4”) auxiliary axis available on all three spindles is one of the most important innovation allowing for a wider range of control for each spindle.

VALIANT Automatic CNC multi-spindle drilling lines	453 VL 453 VL-R	603 VL 603 VL-R	1003 VL 1003 VL-R	1103 VL 1003 VL-R	1203 VL 1203 VL-R	2003/6 VL	2003/8 VL
Section size [min.mm]	60*x10	60x10	60x10	80x10	80x10	200x75	200x75
Section size [max.mm]	460x460	610x460	1015x460	1115x510	1220x610	2030x610	2030x810
Drilling heads [no.]	3	3	3	3	3	3	3
Drilling tools per head [no.]	6/14	6/14	6/14	6/14	6/14	6/14	6/14
Drilling diameter [max mm]	40	40	40	40	40	40	40
Spindle power [kW]	31	31	31	31	31	31	31
Spindle speed [max.RPM]	5000	5000	5000	5000	5000	5000	5000
Spindle sub-axis stroke [mm]	300	300	300	300	300	300	300
Machine weight [kg]	10000	11000	11000	11500	11500	14500	15000

* Angles, square and rectangular tubes with min. side of 50 mm only on carriage and pincher feeding models.

VALIANT Drilling and band sawing	453 VLB	603 VLB	1003 VLB	1103 VLB	1203 VLB	2003/6 VLB	2003/8 VLB
Motor power [kW]	9	9	9	15	15	18	19
Band saw blade speed [max.mt/min]	170	170	170	170	170	170	170
Band saw blade size [mm]	41x1.3x7250	41x1.3x7250	41x1.3x7250	54x1.6x9920	67x1.6x9000	67x1.6x12100	67x1.6x12100
Machine weight [kg]	14500	15500	15500	23000	17900	31000	32500
