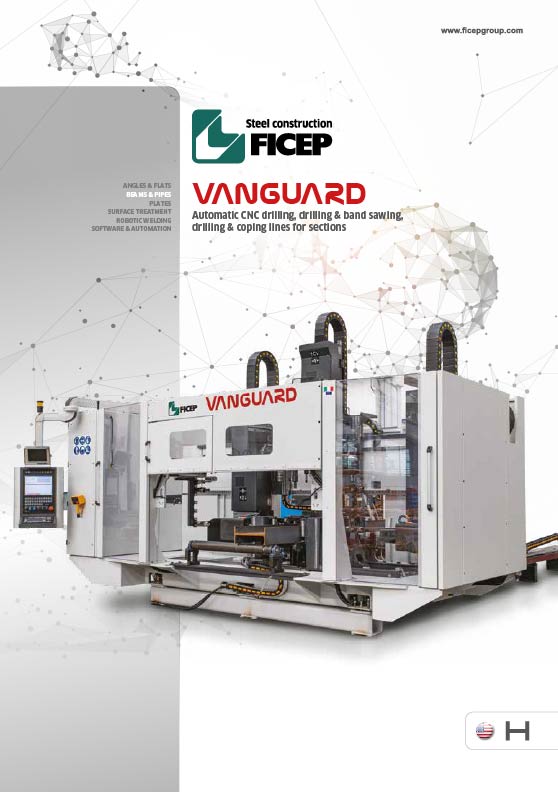

Automatic CNC drilling, drilling & band sawing, drilling & coping lines for sections

The Vanguard is an automatic CNC controlled three spindle beam drilling line complete with automatic tool changers and four side scribing capability. Its economical design makes this drill line a reliable and reasonably priced production cell.

PROCESSES

Drilling

Scribing

Milling

Countersinking

Tapping

Marking

Band sawing

Oxy-fuel cutting

Plasma cutting

SECTION SHAPES

Beams

Angles

Flats

Channels

Square tubes

Rectangular tubes

MEASURING SYSTEM

A sophisticated combination of probing, clamping and laser devices allows precise measuring of beam length and width, as well as flanges and web height.

THREE INDEPENDENT SPINDLES

The users can rely on three direct drive independent drilling heads with maximum power on each spindle.
The three high-tech spindles can operate simultaneously on both flanges and the web.

DIRECT DRIVE SPINDLE

The powerful direct drive spindle ensures high drilling performances.
This heavy duty, yet simple design, makes this spindle the most efficient and advanced on the market today.

CARBIDE DRILLING

Thanks to the high RPM spindles, carbide tools can be utilized to their maximum efficiency.

UNDERSIDE SCRIBING

Besides the top scribing, carried out with the relevant tool, underside scribing operations can be performed with an optional scribing spindle.

TOOL CHANGER

The automatic tool change system is managed by the CNC and is equipped with 6 positions on each spindle.

MAGNETIC DEVICE

When combined with a band saw, a magnetic back fence allows for the unloading of trim cuts, small drops and short parts onto the unloading table for short pieces.

SINGLE CNC CONTROL UNIT

When combined with a band saw or with a thermal coping robot, there is no need to add an additional CNC unit as the entire system is controlled by a single CNC.

SAFETY

All our systems are supplied in accordance with the highest safety standards and regulations.

This reasonably priced solution offers great productivity and exceptional strength for years to come.

The performance of the Direct Drive spindles makes sure the highest standards of performance and quality are achieved.

This model is capable of multitasking solutions for the steel fabrication industry.

Remote diagnostics are possible through a network connection that allows our service team to perform a system analysis.

Units of measure

Metric
Imperial

VANGUARD Automatic CNC multi-spindle drilling lines	453 VN 453 VN-R	603 VN 603 VN-R	1003 VN 1003 VN-R	1103 VN 1103 VN-R	1203 VN 1203 VN-R
Section size [min.mm]	60*x10	60x10	60x10	80x10	80x10
Section size [max.mm]	460x460	610x460	1015x460	1115x510	1220x610
Drilling heads [no.]	3	3	3	3	3
Drilling tools per head [no.]	6	6	6	6	6
Drilling diameter [max mm]	40	40	40	40	40
Spindle power [kW]	31	31	31	31	31
Spindle speed [max.RPM]	5000	5000	5000	5000	5000
Machine weight [kg]	8500	9500	9500	10000	10000

* Angles, square and rectangular tubes with min. side of 50 mm only on carriage and pincher feeding models.

VANGUARD Drilling and band sawing	453 VNB	603 VNB	1003 VNB	1103 VNB	1203 VNB
Motor power [kW]	9	9	9	15	15
Band saw blade speed [max.mt/min]	170	170	170	170	170
Band saw blade size [mm]	41x1.3x7250	41x1.3x7250	41x1.3x7250	54x1.6x9920	67x1.6x9000
Machine weight [kg]	13000	14000	14000	21500	16400

VANGUARD Drilling and thermal coping	604 VNFRC	604 VNRAZ	1204 VNFRC	1204 VNRAZ
Oxy-fuel-fuel torch [no.]	1	-	1	-
Plasma torch [no.]	1	1	1	1
Machine weight [kg]	18500	18500	19000	19000

VANGUARD Automatic CNC multi-spindle drilling lines	453 VN 453 VN-R	603 VN 603 VN-R	1003 VN 1003 VN-R	1103 VN 1103 VN-R	1203 VN 1203 VN-R
Section size [min.inch]	2-3/8”(*) x 3/8"	2-3/8”(*) x 3/8"	2-3/8”(*) x 3/8"	3-1/4” x 3/8”	3-1/4” x 3/8”
Section size [max.inch]	18” x 18”	24” x 18”	40” x 18”	43-7/8” x 20”	48” x 24”
Drilling heads [no.]	3	3	3	3	3
Drilling tools per head [no.]	6	6	6	6	6
Drilling diameter [max.inch]	1-9/16”	1-9/16”	1-9/16”	1-9/16”	1-9/16”
Spindle power [HP]	42	42	42	42	42
Spindle speed [max.RPM]	5000	5000	5000	5000	5000
Machine weight [lbs.]	18,730	20,940	20,940	22,040	22,040

* Angles, square and rectangular tubes with min. side of 2’’ only on carriage and pincher feeding models.

VANGUARD Drilling and band sawing	453 VNB	603 VNB	1003 VNB	1103 VNB	1203 VNB
Motor power [HP]	12	12	12	20	20
Max band saw blade speed [FPM]	558	558	558	558	558
Band saw blade size [inch]	1.61’’ x .051’’ x 286”	1.61’’ x .051’ x 286”	1.61’’ x .051’’ x 286”	2.12” x .063” x 390-1/2”	2-5/8” x .063’’ x 354”
Machine weight [lbs.]	28,700	30,865	30,865	47,400	36,200
